Cable Ladder

Cable Trays | Cable Ladder | Cable Trunking


2.1- Ladders are divided into two categories:

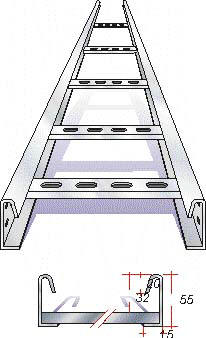

A - Classic:

       * Material thickness 1.5mm.

       *  Rung type U welded type

       * Rung spacing 300mm centre

       *  Standard length 2.44 Mtr OR 3 Mtr.

       *  Standard finishes
          1. Hot dip galvanized after fabrication to BS 729.
          2. Epoxy Coating
          3. PVC coating
          4. Stainless steel



Where the height of the return flange, the thickness and the design of accessories are different from the classic 1 range.


2.2- Rungs


      a. Types of rungs:



1.  Revited Type (RV)
  Which is used only for 55mm and
  75mm height cable ladder


2.  Tabular Type (TB)
  Which is used only for 75mm
  and 100mm height


3.  U welded Type
  Used with standard height of 55mm
  upto 180mm available with
  3 different types.




A. (UW1) Standard downward rung

B. (UW2) Standard upward rung

C. (UW3) Standard top rung




4. Channel Welded Type:

Used with standard heights starting from 55mm up to 180mm, available with two sizes 41 x 21mm and 41 x 25mm rungs & thickness 2.5mm.


A.  Standard down ward
C rung (CW1)

B.  Standard down ward
C rung (CW2)


C.  Standard upward
C rung (CW3)

D.  Standard upward
C rung (CW4)






b- Perforation of the rungs

  1. Horizontal slots - Standard perforation



  2. Vertical slots perforation available as per customer request



2.3- Accessories:

All accessories are made with a standard radius of 300mm. However, we can supply alternatively radius of 600 and 900mm. Horizontal bends and Vertical risers are also available in other than 90deg as a standard item.
Rungs other than 300mm centre are also supplied upon request.


 1- Horizontal Bend 90deg

2- Equal Tee

3- Horizontal Cross

4- Vertical inside Riser

5- Vertical outside riser

6- Reducer
